利用orangepi +摄像头 使用python写一个延时摄影的程序。

一，思路

orangepi 外接摄像头，利用opencv，按照一定间隔取图，再利用opencv 将图片编码成视频。

利用mqtt进行通讯，可以写一个app进行控制。

二，代码

# -*- coding: utf-8 -*-
import cv2
import random
import paho.mqtt.client as mqtt
import threading
import time
import shutil
import os
import json
from PIL import Imageclass Camera(object):def __init__(self,_host,_port):self.host=_hostself.port=_portself.client_id='python-mqtt-{}'.format(random.randint(0,1000))self.client=mqtt.Client(self.client_id)self.camera_start='camera_start'self.camera_stop='camera_stop'self.cap = cv2.VideoCapture(1) self.isRuning=False#3秒1张 12小时 压缩成120fps =  两分钟视频self.interval=3#录制多少小时self.duration=0self.imagePath='/mnt/usb/image'self.videoPath='/mnt/usb/video'#开始录制def start(self):index=0shutil.rmtree(self.imagePath)os.makedirs(self.imagePath)print('开始录制视频 ',self.duration)while self.isRuning:ret,frame = self.cap.read()if ret:imgName=self.imagePath+'/{}.jpg'.format(index)cv2.imwrite(imgName,frame)index+=1# frame = cv2.imread('test.jpeg')# imgName=self.imagePath+'/{}.jpg'.format(index)# cv2.imwrite(imgName,frame)# index+=1time.sleep(self.interval)#到时间自动停止if self.duration !=0:if (60*60*self.duration)/self.interval<=index: self.stop()#停止录制def stop(self):print('停止录制 开始生成视频')self.isRuning = Falsetime.sleep(self.interval)current_timestamp = time.time()local_time = time.localtime(current_timestamp)current_time = time.strftime('%Y-%m-%d_%H:%M:%S',local_time)videoFile = self.videoPath+"/"+current_time+".mp4"t = threading.Thread(target=self.image_to_video(self.imagePath,videoFile,120))t.start()#生成视频def image_to_video(self,_image_path, _media_path, _fps):image_names = os.listdir(_image_path)image_names.sort(key=lambda n: int(n[:-4]))fourcc = cv2.VideoWriter_fourcc('M','P','4','V')fps = _fpsimage = Image.open(os.path.join(_image_path, image_names[0]))media_writer = cv2.VideoWriter(_media_path, fourcc, fps, image.size)for image_name in image_names:print(image_name)im = cv2.imread(os.path.join(_image_path, image_name))media_writer.write(im)media_writer.release()print('视频写入完成')def __del__(self):self.client.disconnect()self.cap.release()def on_message(self,client,userdata,message):print('收到消息 ',message.topic,message.payload.decode('utf-8'))if message.topic==self.camera_start:if self.isRuning==False:self.isRuning=TruepayloadStr = message.payload.decode('utf-8')payloadJ = json.loads(payloadStr)self.duration = payloadJ["duration"]t = threading.Thread(target=self.start)t.start()elif message.topic == self.camera_stop:self.stop()def run(self):self.client.connect(self.host,self.port)self.client.on_message=self.on_messageself.client.subscribe(self.camera_start)self.client.subscribe(self.camera_stop)self.client.loop_forever()if __name__ =='__main__':try:camera = Camera("127.0.0.1",1883)camera.run()except KeyboardInterrupt:del camera

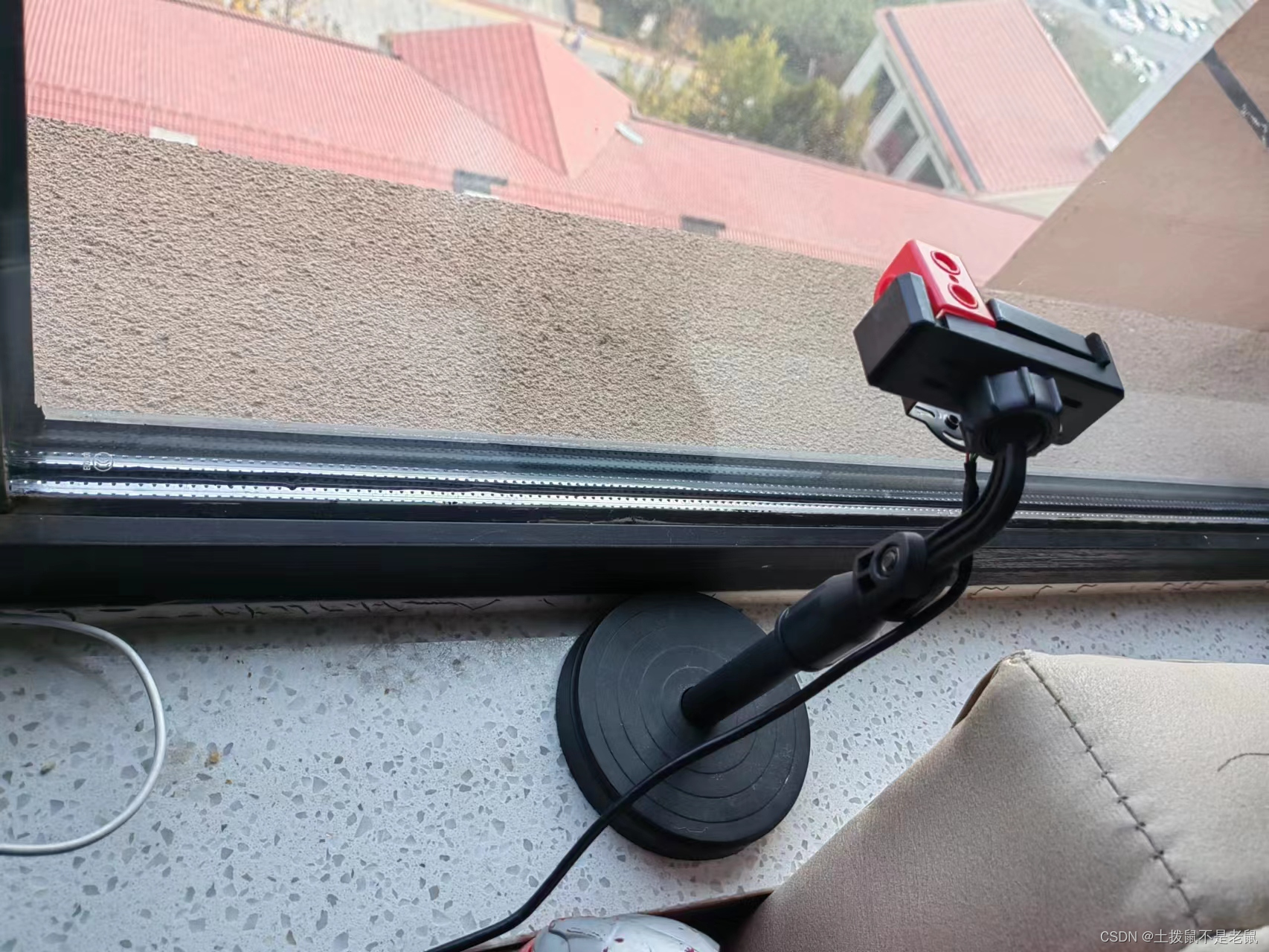

三，粗糙的设备

四，拍摄了一个晚上的街景。 摄像头有点差 而且大雾 看的很模糊
